Reactors & Mixing Vessels

Enquire Now

Umasons has the capability to fabricate a vast variety of processing vessels for your mixing, blending and Intermidiate storage needs. All vessels and tanks are customized as per the specifications required by our customers. We manufacture vessels and tanks mainly in Stainless Steel SS 304 and SS 316.

Intermediate Vessels/ Process Vessels

Umasons can manufacture complex processing and intermediate vessels for the process and chemical industry.

We have broad experience in the parameters needed for handling highly volatile, corrosive

Umasons also has knowledge of the combinations of fittings, appendages, heat transfer and mixing equipment

We provide jacketed / limpet coiled and insulated tanks in SS 316 and SS 304.

Special nozzles, manholes, level indicators, viewing ports, temperature probes and another additional appendages can be built in-to your intermediate & process vessels.

Reactor
1000 Liters SS316L Reactors
Reactor

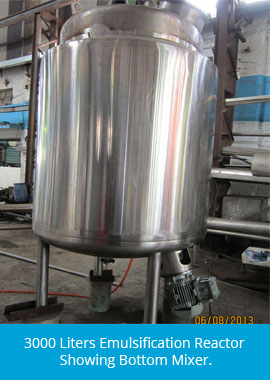

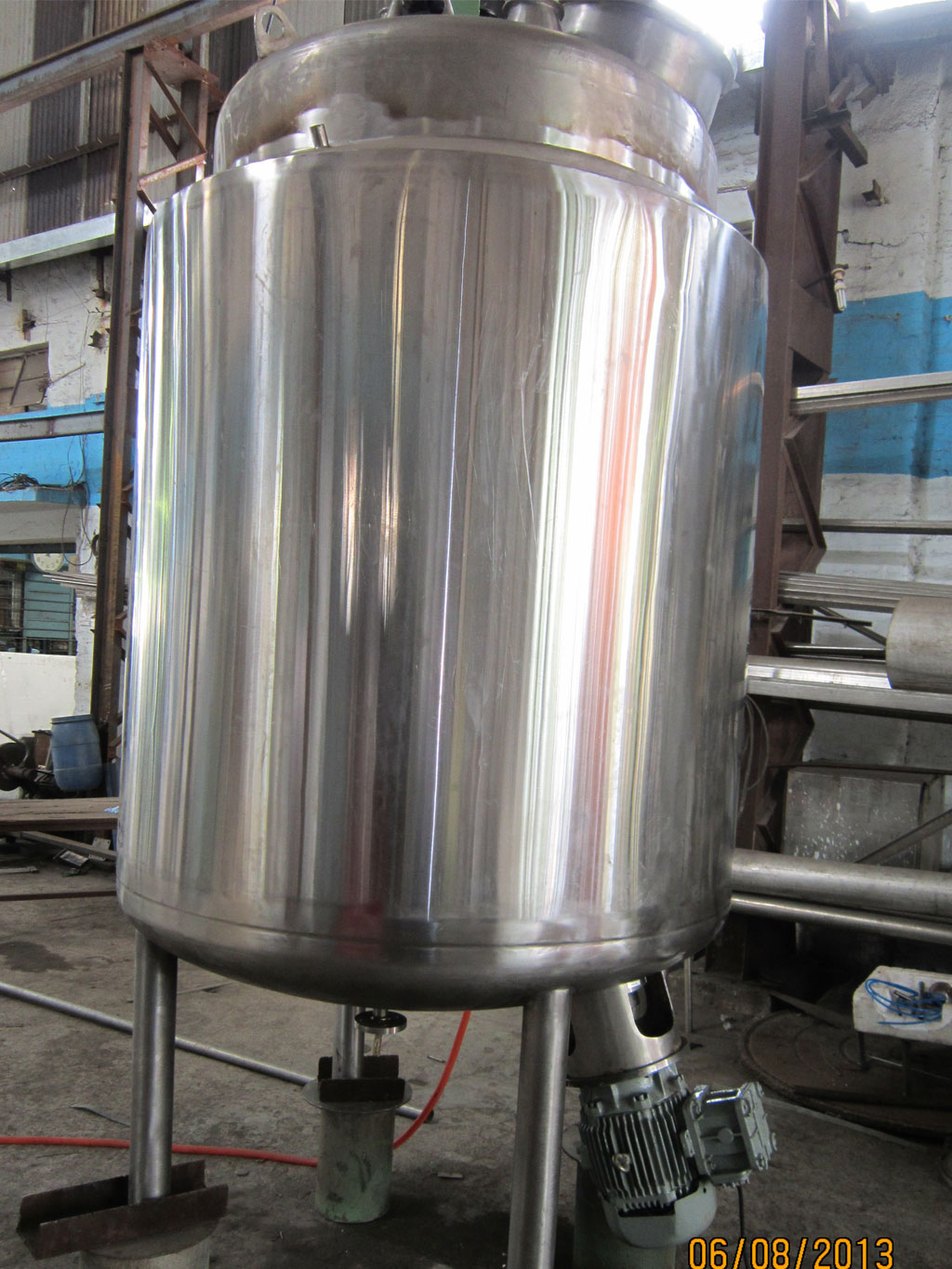

3000 Liters Emulsification Reactor Showing Bottom Mixer.
Reactor

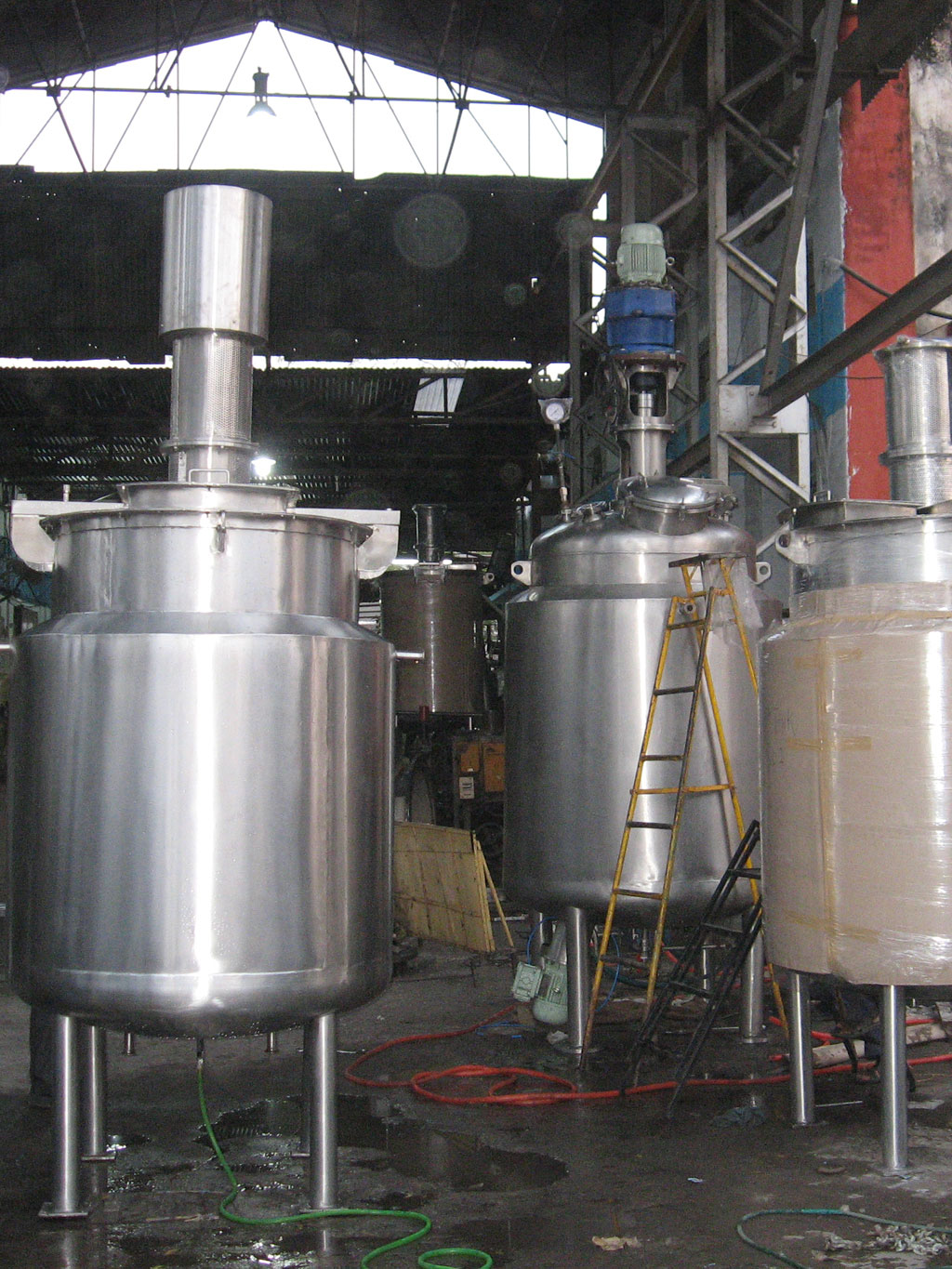

3000 Liters Jacketed Reactors Ready for Dispatch

Standard Designs of Reactor / Mixing Vessels

Reactor

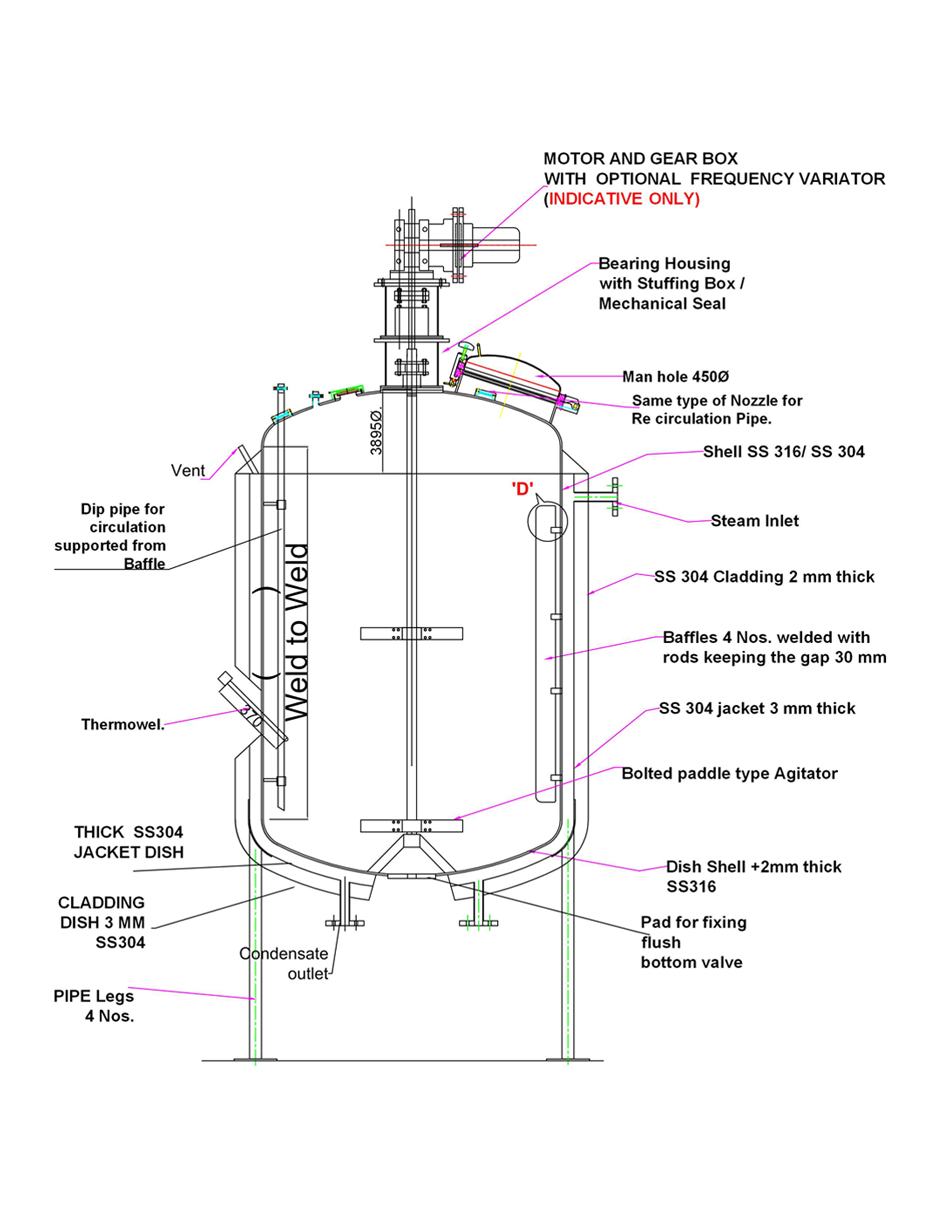

Jacketed Both Side Dished end Reactor

  • Top and Bottom- Dish end
  • Jacketed - Fr Shell and Bottom dish
  • Insulated with Cladding
  • Agitator - Turbine type/ Propeller Type Anchor Type, with Bottom Tripod
  • With or with out Mechanicalanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Jacket dish, Out let and vent at top of dish.
  • Designed for Internal Pressure, Ext Pressure, Vacuum As required.

Both Side Dished end Reactor

  • Top and Bottom- Dish end
  • Agitator - Turbine type/ Propeller Type. Anchor Type, with Bottom Tripod
  • With or with out Mechanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Jacket dish, Out let and vent at top of dish.
  • Designed for Internal Pressure, Ext Pressure, Vacuum, As required.
Reactor
Reactor

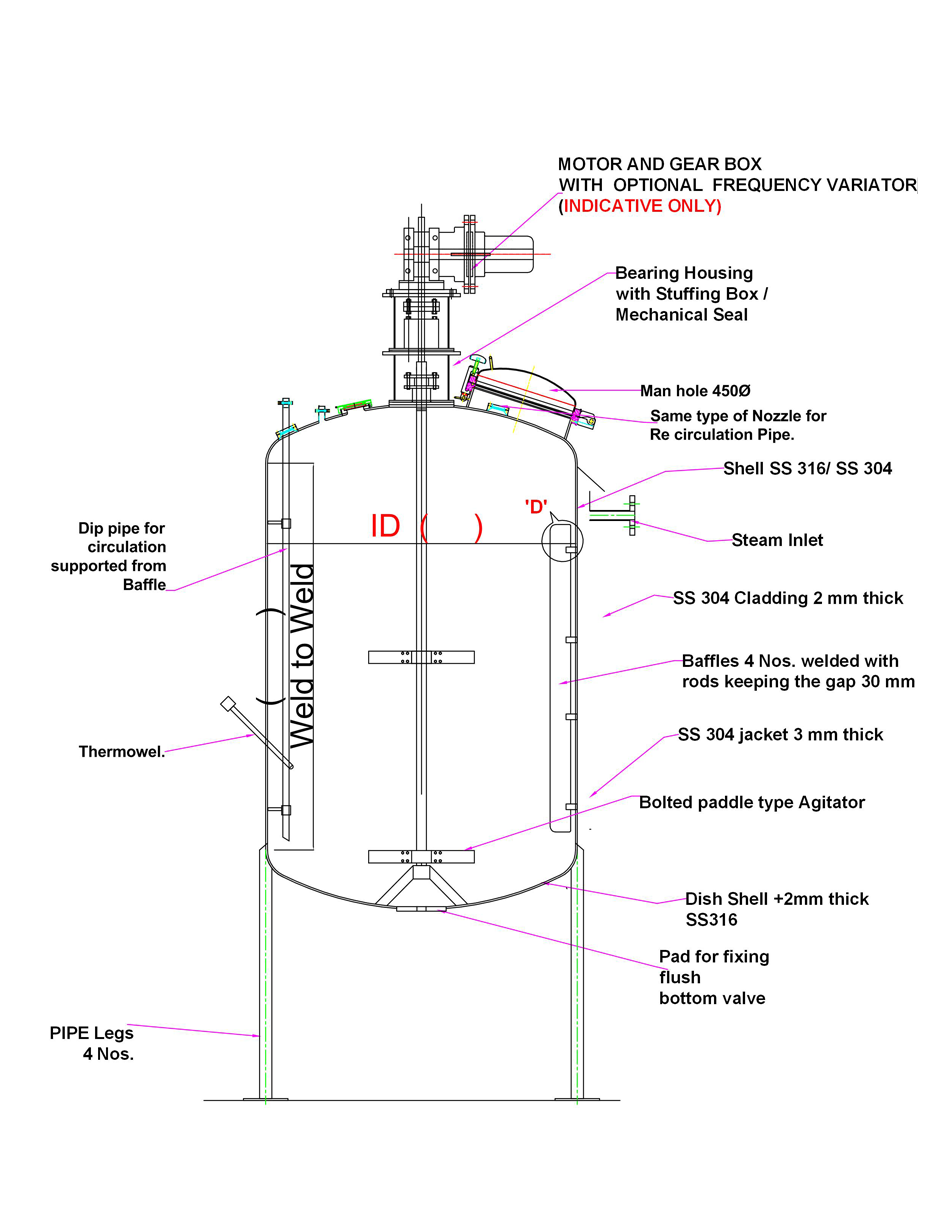

Shell Jacketed Dished Reactor

  • Top and Bottom- Dish end
  • Jacketed - Fr Shell and Bottom dish
  • Insulated with Cladding
  • Agitator - Turbine type/ Propeller Type, Anchor Type, with Bottom Tripod
  • With or with out Mechanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Jacket dish, Out let and vent at top of dish.
  • Designed for Internal Pressure, Ext Pressure, Vacuum As required.

Conical Bottom Top Dish Reactor

  • Top and Bottom- Dish end
  • Jacketed - Fr Shell and Bottom dish
  • Insulated with Cladding
  • Agitator - Turbine type/ Propeller Type. Anchor Type, with Bottom Tripod
  • With or with out Mechanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Designed for Internal Pressure, Ext Pressure, Vacuum, As required.
Reactor
Reactor

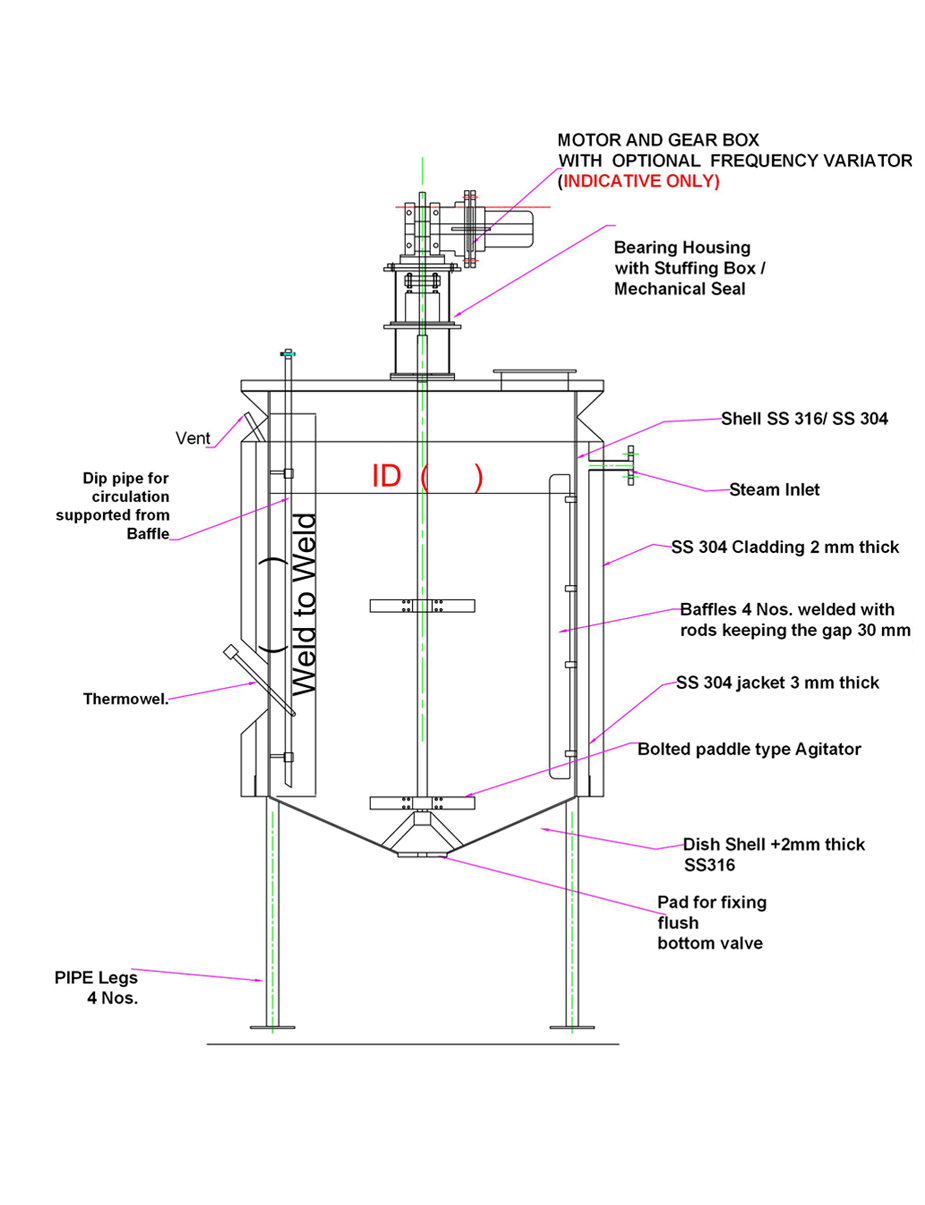

Conical Bottom Flat Top Jacketed Reactor

  • Top Flat and Bottom- Conical
  • Jacketed - Fr Shell and Bottom dish
  • Insulated with Cladding
  • Agitator - Turbine type/ Propeller Type, Anchor Type, with Bottom Tripod
  • With or with out Mechanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Jacket dish, Out let and vent at top of dish.
  • Designed for Internal Pressure, Ext Pressure, Vacuum As required.

Conical Bottom Flat Top Reactor

  • Top Flat and Bottom-Cone
  • Agitator - Turbine type/ Propeller Type, Anchor Type, with Bottom Tripod
  • With or with out Mechanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Jacket dish, Out let and vent at top of dish.
  • Designed for Internal Pressure, Ext Pressure, Vacuum, As required.
Reactor
Reactor

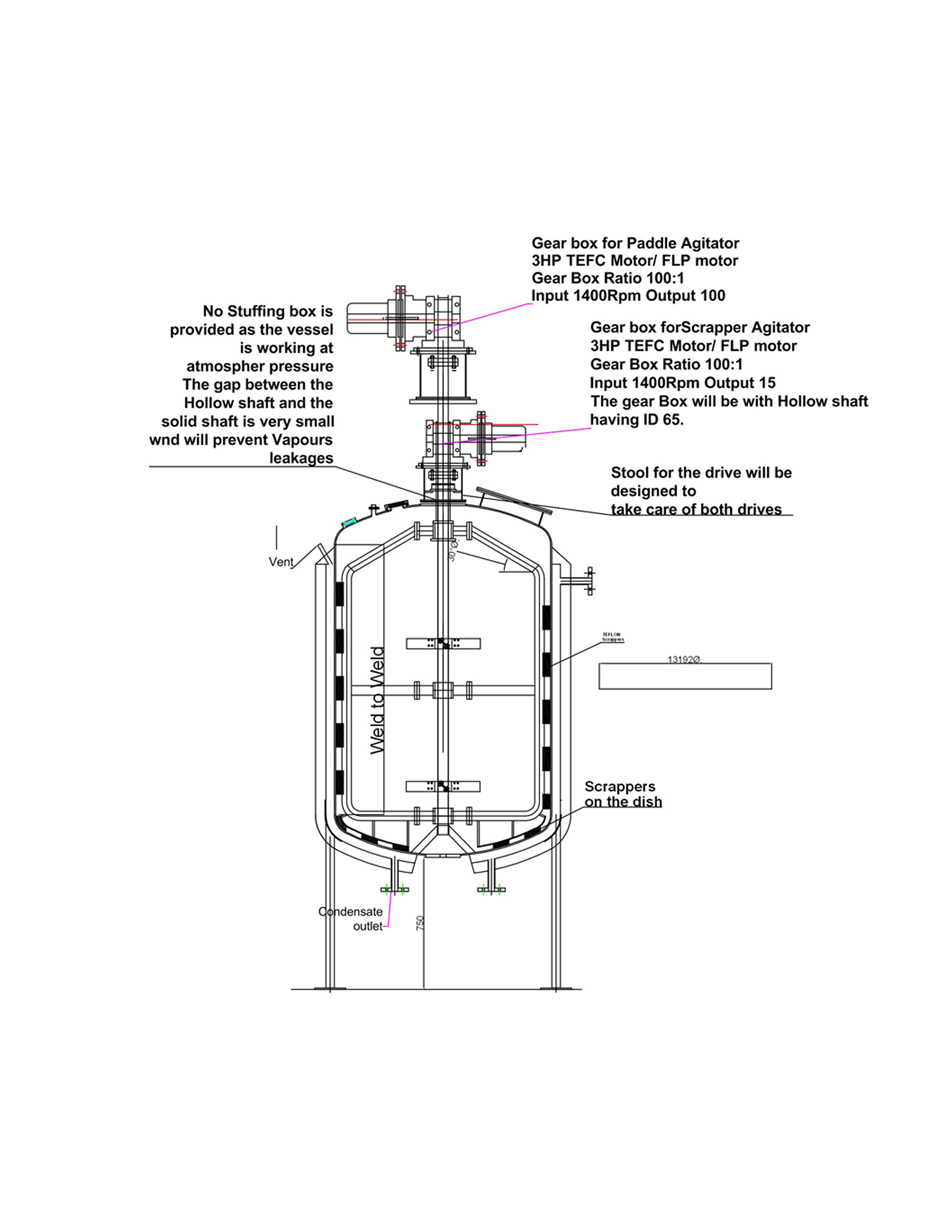

Scrapper Reactor

  • Top and Bottom- Dish end
  • Jacketed - Fr Shell and Bottom dish
  • Insulated with Cladding
  • Agitator - Propeller Type with Internal scrapper to continuous cleaning the shell. with Bottom Tripod
  • With or with out Mechanical seal
  • With Leg / lug support
  • 1 No Man hole/ Two Sight and Light Glass, Dip Pipe, Pad for Flush Bottom Valve
  • Thermo well
  • Inlet, Drain for Bottom
  • Jacket dish, Out let and vent at top of dish.
  • Designed for Internal Pressure, Ext Pressure, Vacuum, As required.
